Vehicle Rental Management using Odoo Rental & Fleet Module | Complete Workflow Guide

Managing a vehicle rental business manually can quickly become difficult as bookings, vehicle availability, maintenance, and customer records increase. Businesses often struggle with tracking vehicle status, rental schedules, and invoicing in separate systems or spreadsheets.

With Odoo Rental applications, companies can manage their entire vehicle rental operation in a centralized platform. From vehicle registration and rental bookings to pick up, return, invoicing Odoo helps streamline the complete workflow efficiently.

In this blog, we will explore the complete vehicle rental management workflow using Odoo Rental and Fleet applications with demo data.

Benefits of Using Odoo for Vehicle Rental Business

• Centralized rental management
• Automated invoicing and late fee calculation
• Easy tracking of vehicle movement
• Better maintenance and servicing control
• Reduced manual work and operational errors
• Real-time vehicle availability tracking

1 Configuration of vehicle management system in Odoo

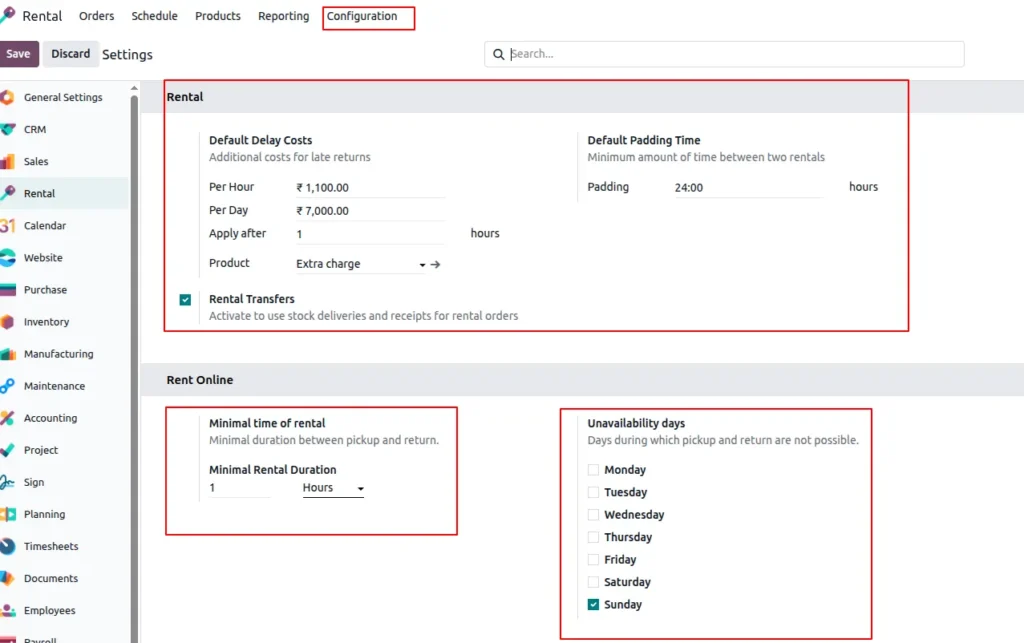

1. Rental Pricing & Delay Policyconfiguration inOdoo

This section outlines how the system manages costs beyond the initial rental period.

• Hourly Late Fee: Set a fixed rate (e.g., ₹ 1,100.00) for every hour a return is delayed.
• Daily Late Fee: Define the maximum daily penalty (e.g., ₹ 7,000.00) for long-term delays.
• Grace Period: Configure the “Apply After” threshold to determine exactly when penalties trigger (currently set to 1 hour).
• Service Integration: Link late fees to a specific “Extra Charge” product for automated invoicing.

2. Operational Buffer & MaintenanceinOdoo

Manage the turnaround time between consecutive rentals to ensure quality control.

• Minimum Padding Time: Define the mandatory gap between two rental bookings (currently 24 hours).
• Equipment Prep: Use this time for cleaning, inspection, and restocking to ensure the next customer receives a high-quality product.

3. Booking Rulesof rental product inOdoo

• Minimum Duration: Enforce a baseline rental period (e.g., 1 hour) to ensure every transaction is cost-effective.
• Blackout Days: Define “Unavailability Days” where pickups and returns are restricted (e.g., Sundays) to align with business operating hours.

4. Inventory & Logistics Integration

Standardize how physical items are tracked during the rental lifecycle.

• Automated Transfers: Enable “Rental Transfers” to automatically generate delivery orders and return receipts.

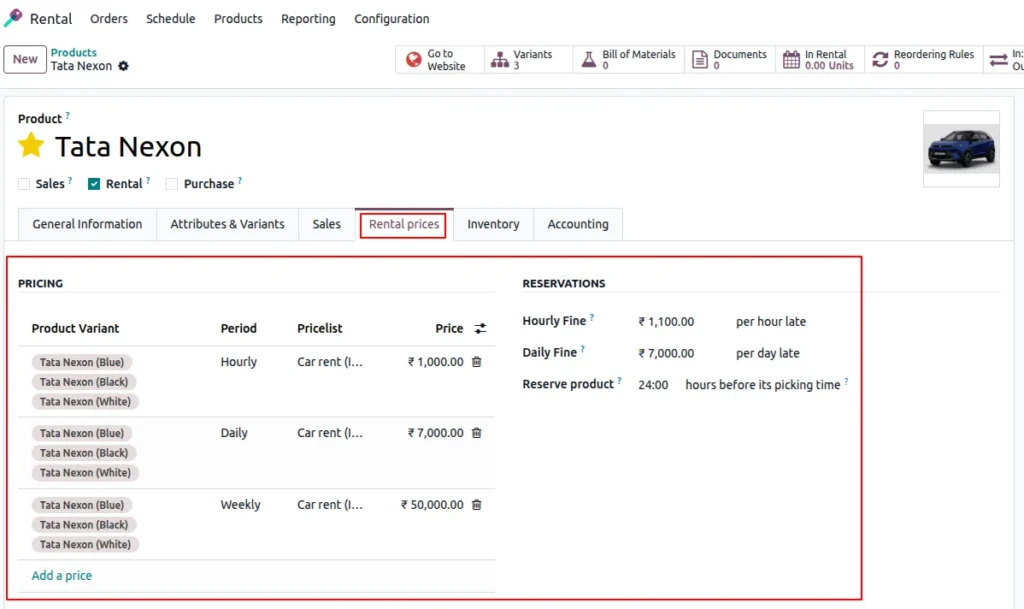

5. RentalProduct Configuration in Odoo

You can configure the vehicle as a product in Odoo to manage it through the Rental module.

• Can Be Rented Option – Make sure to enable the “Can be Rented” option so the vehicle/product becomes available for rental operations.
• Product Type – The product type should be configured as “Storable Product” to manage stock movements and inventory operations properly.
• Serial Number Tracking – The tracking method should be set as “By Unique Serial Number” to track each vehicle individually. Using serial number tracking, you can easily identify which specific vehicle was rented to which customer, including pickup date, return date, and complete movement history.
• Rental Pricelist Configuration – In the Rental tab, you can configure rental pricing based on business requirements, such as hourly charges, daily charges, or custom rental durations.
• Late Return Charges – You can also configure late return charges in the Rental tab. If the customer returns the vehicle/product after the scheduled return time, Odoo will automatically calculate the additional late fee based on the configured charges.
• Flexible Pricing Management – Odoo allows you to maintain different rental pricing rules and penalty charges, making the rental process fully automated and easy to manage.

6. Other Configuration

You can configure rental period and Rental quotation Templates from,

Rental Module–> Configuration–> Rental period/ Quotation Templates

2 Other Menu

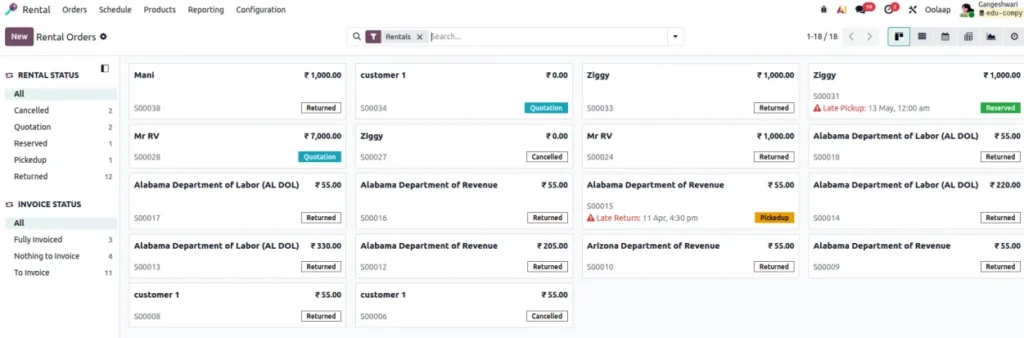

2.1 All Orders

Go to Orders–> Orders to see all orders with stages.

2.2 How to see scheduled Orders for today

Just go to rental–> orders–> To do Today–> open Return/Pick up menu

3. Rental Flow in Odoo

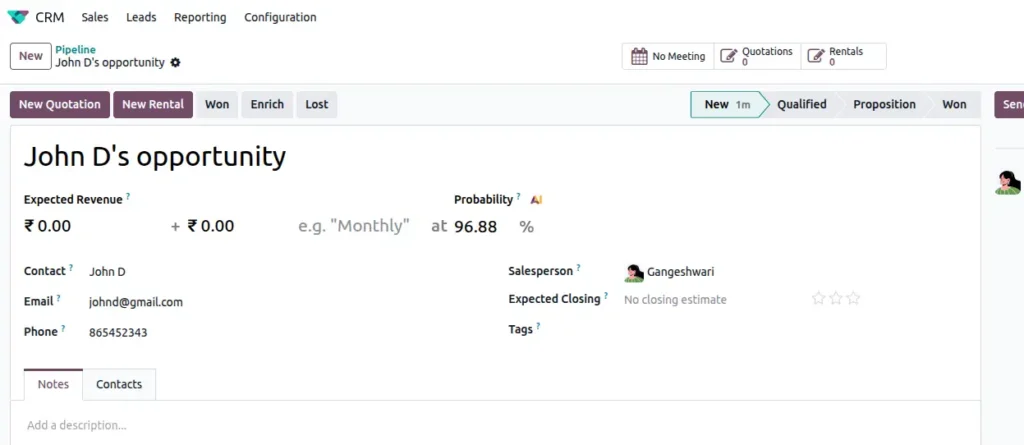

3.1 Lead Management in Odoo

You can manage all customer inquiries from the CRM module. If the customer responds positively, you can convert the lead into an opportunity and directly create a rental order from the opportunity.

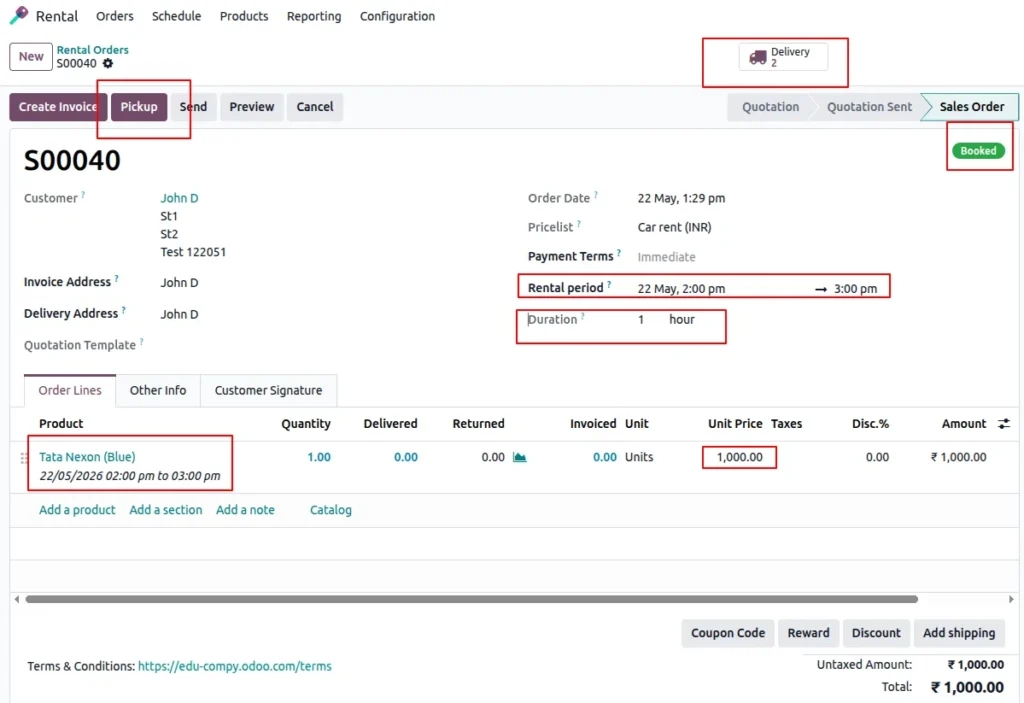

3.2 Create Rental Order in Odoo

There are two ways to create rental orders in Odoo:

1. Directly from the Rental module
2. From the CRM module by converting a lead into an opportunity

While creating rental order we must add below points,

• Rental Period – Defines the start and end date/time of the rental duration for the product.
• Duration – Shows the total rental time calculated based on the selected rental period.
• Product Rental Timeline – Displays the booked rental slot for the product along with the scheduled pickup and return timing.
• Unit Price – Represents the rental charge applied for the selected rental duration.
• Pricelist: Select rental Pricelist

3.3 Delivery Orders in rental

After confirming the order, two delivery orders will be created. The first delivery order will be for picking up the product from our location and delivering it to the customer location, and the second delivery order will be created for returning the product from the customer location back to our location.

Order Status (Booked) – you will also see the status Indicates that the rental order has been confirmed and the product is successfully booked for the selected rental period.it will change if the pickup or return will Late.

Odoo will check vehicle availability for the selected rental period. If the vehicle is already booked or unavailable, then system will not reserve the vehicle.

3.3.1 Pick UP order

Pickup Button Used to initiate the pickup process for the rental product from our location to the customer location. In this step you will notice below operations.

• Delivery Smart Button – The pickup operation can also be accessed from the Delivery smart button.
• Automatic Product Reservation – The product will be reserved automatically with its serial number if the product is available in stock.
• Transfer Validation – After validating the transfer, a stock move line will be created.

3.3.2 Return Order

Return Button – After completing the pickup process, the Return button will become visible in the order. After validating the return, the below changes will happen automatically.

• Return Process – Click on the Return button to initiate the return process.
• Return Validation – After validating the return transfer, the vehicle/product will be returned successfully from the customer location to the Input location.
• Internal Transfer Creation – After the return to the Input location, another transfer is created to move the product from Input to Stock location.
• Stock Update – The product with its serial number will be moved back into stock automatically.
• Move Line Creation – A stock move line is generated for the transfer.

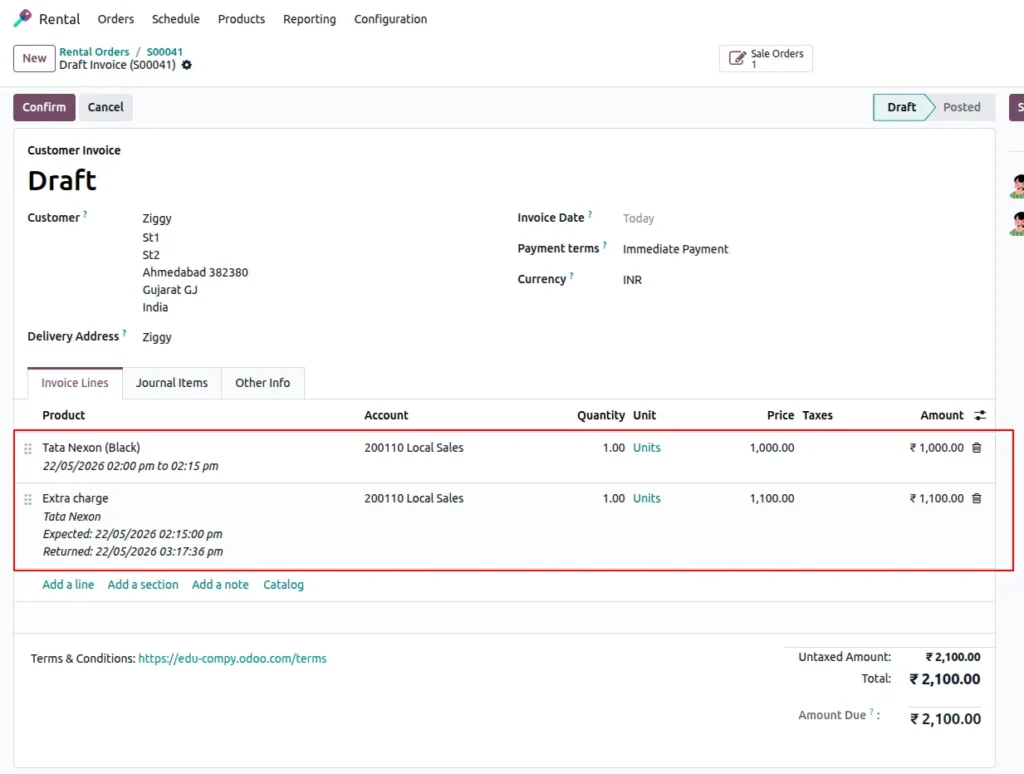

3.4 Customer Invoice Management

After the rental return process is completed, you can generate customer invoices directly from the rental order. Odoo automatically adds rental charges, late return charges, and any additional configured charges into the invoice. After invoice confirmation, accounting entries are created in the accounting module.

3.6 How to calculate late return charge in Odoo rental module

• Odoo automatically calculates late return charges when the customer returns the vehicle/product after the scheduled return time.
• Late charges are calculated based on the configured late fee rules in the Rental settings.
• Here you see that the late fee is calculated as ₹1100 because the vehicle is returned 1 hours late, Odoo will automatically calculate an additional ₹1100 charge.
• During invoice creation, the late return amount is automatically added as a separate invoice line along with the rental charges.
• No manual calculation or additional entry is required, as Odoo automatically checks the delay duration and applies the late charges accordingly.

Confirm the invoice to do accounting entry.

4. How to use Fleet module in Rental business in Odoo

The Fleet module can be used in a vehicle rental business to manage all vehicle-related information in a single place. The Rental module handles booking, pickup, return, invoicing, and rental pricing, while the Fleet module helps in managing vehicle details, servicing, contracts, fuel logs, odometer readings, and maintenance history.

• Vehicle Management – Vehicles can be created and managed in the Fleet module with details such as model, registration number, chassis number, fuel type, and ownership information.
• Maintenance Tracking – Fleet helps track vehicle servicing, repairs, insurance, pollution certificates, and maintenance schedules to ensure vehicles are rental-ready.
• Vehicle Availability – Rental orders can be planned based on the vehicle status maintained in the Fleet module, such as active, under maintenance, or unavailable.
• Cost Management – Fuel expenses, repair costs, insurance costs, and service expenses recorded in Fleet help analyze the profitability of rental vehicles.
• Odometer Tracking – Fleet can maintain odometer readings before and after rental, helping track vehicle usage and maintenance requirements.
• Rental Operations – The Rental module manages booking, pickup, return, late charges, invoicing, and stock movement of vehicles.
• Serial Number Tracking – Vehicles can be tracked individually using serial numbers/lot numbers for proper rental and inventory management.
• Business Benefit – Combining Fleet and Rental modules provides complete control over vehicle operations, maintenance, billing, and rental lifecycle management in a single system.

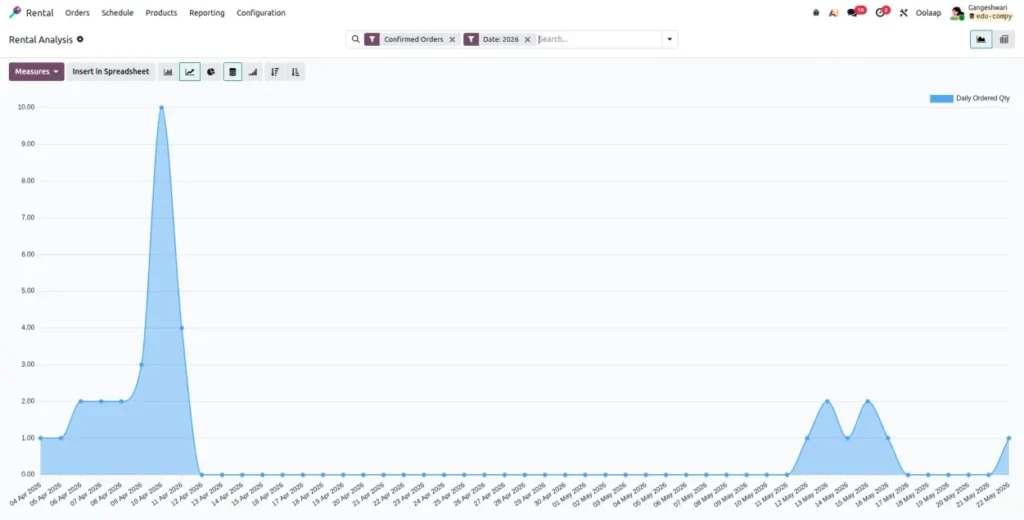

5. Reporting

Odoo provides multiple reporting options for rental analysis, including Graph View and Pivot View. Businesses can analyze rental revenue, delayed returns, vehicle utilization, and customer rental history for better operational decision-making.

Watch the complete Vehicle Rental workflow below

 Conclusion

Odoo Rental and Fleet applications provide a complete solution for managing vehicle rental businesses efficiently. From vehicle booking and delivery management to return processing, invoicing, late fee calculation, and maintenance tracking, Odoo helps automate the complete rental workflow while reducing manual effort and operational errors.
